Patent, Patent No. : ZL200620154598.0 / ZL200630176218.9

1. This machine is equipped with double axis cloth wheel, high production efficiency, very suitable for surface polishing or hair pulling thread.

2. Suitable for the surface grinding and polishing of cylindrical, conical and spherical hardware products, metal utensils and sanitary equipment with diameter less than 50mm and length less than 100mm.

3. With suitable abrasive liquid, the spray gun can make the workpiece surface finish to achieve satisfactory results.

4. The machine performance is stable, reliable, simple operation, can be changed according to the size of the workpiece clamping workpiece metallurgy tool or workpiece processing size.

* Machine specifications can be according to customer needs!

· Mechanical size: 2100×1600×1200mm

· Mechanical weight: 1100kgs

· Motor specification: 20HP

· Applicable consumables: Brun, linen wheel, non-woven Brun

· Consumable specifications: Bren ￠24" center hole/hemp wheel ￠24" center hole ￠38mm

Patent No.:ZL200520059531.4 Patent No.:ZL200520059531.4

1. Up and down round-trip transmission type automatic polishing machine, with directional polishing function.

2. Polish the column, depending on the workpiece demand.

3. It has the function of up, down, forward and backward adjustment.

4. When the cloth wheel loss, with automatic compensation function.

5. Equipped with spray gun and automatic supply for polishing fluid.

6. Electric control system, PLC control, man-machine interface.

7. Equipment of high quality.

· Floor area: about 9600×3500×2700mm(excluding compartments)

· Total mechanical power: about 65kw(excluding dust collector)

· Total weight: about 28,000kgs

· Consumable specifications: Cloth wheel :￠24 ~ 18" ￠7" center hole

· Spacer plate :￠9" center hole ￠7"

· Center iron :￠7" center hole ￠3"

It is suitable for plane polishing and grinding of hardware products with less single product production, but more styles and irregular shape.

2. Suitable for surface polishing or sanding of all kinds of cylindrical and spherical hardware products.

3. Fixture replacement is convenient, mechanical adjustment is easy.

4. According to the shape of the workpiece design fixture, according to the size of the workpiece to determine the number of the workpiece on the fixture

· Mechanical size: 1700×1260×1750 mm

· Applicable consumables: emery cloth belt, hemp wheel, cloth wheel

· Motor Specification: Main motor :5.5kw/ auxiliary motor :0.4kw 0.75kw(1.15kw)

· Consumable specifications: flat hemp wheel: maximum ￠18"/ center hole ￠1-1/2"/

Bevel cutting wheel: maximum ￠18"/ center hole ￠7"/ center iron: ￠9"/ center hole ￠1-1/2"

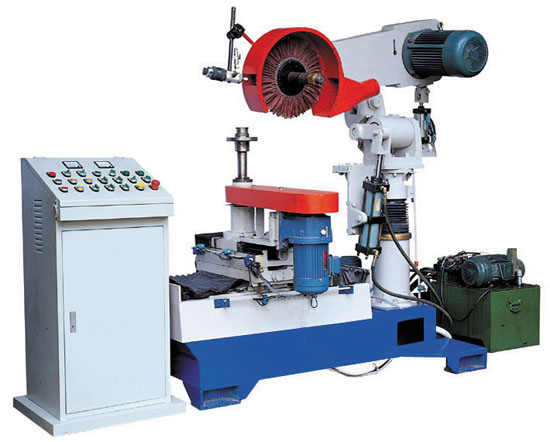

Multi-function polishing machine ST-723 Patent No.:ZL20072004783.8

1. It is suitable for flat polishing and grinding of hardware products with less single product production, but more styles and irregular shapes.

2. Suitable for surface polishing or sanding of all kinds of cylindrical and spherical hardware products.

3. Fixture replacement is convenient, mechanical adjustment is easy.

4. According to the shape of the workpiece design fixture, according to the size of the workpiece to determine the number of the workpiece on the fixture.

· Mechanical size: 900×20659× 1690mm

· Mechanical weight: 2200kgs

· Motor specification: 18HP

· Consumable size: ￠18 ~ 24"

· Applicable consumables: nonwoven wheel, hemp wheel, cloth wheel
